Schneider Electric offers a variety of overload protection devices designed to ensure the safe and efficient operation of electrical systems. Overload protection is crucial to prevent damage to motors and electrical equipment caused by excessive current flow.
Schneider Electric Overload Protection Devices:
TeSys LR9 Electronic Overload Relays:
Description: TeSys LR9 electronic overload relays are designed for motor protection in various industrial applications. They provide advanced motor monitoring and protection features.
Features:
Electronic overload protection for motors.
Adjustable current settings for customized protection.
Advanced diagnostic and communication capabilities.
Compact design for easy integration into motor control systems.

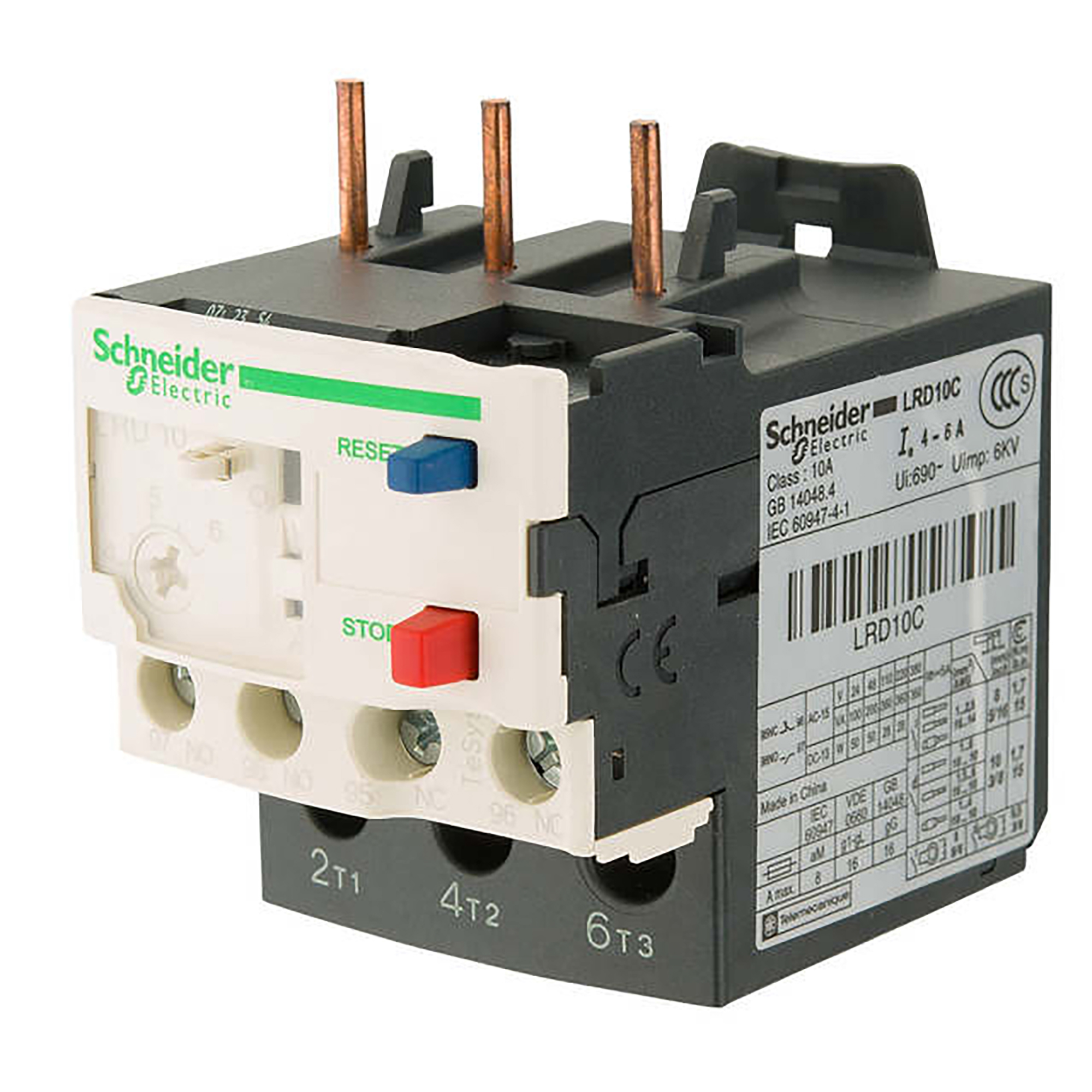

TeSys LRD Thermal Overload Relays:
Description: TeSys LRD thermal overload relays are designed to protect motors from overheating due to sustained overcurrent conditions.
Features:
Bimetallic thermal protection.
Adjustable current settings.
Reset options include manual or automatic.
DIN rail mountable for easy installation.
TeSys GV2 Motor Circuit Breakers:
Description: TeSys GV2 motor circuit breakers provide short circuit and overload protection for motors. They are designed to disconnect the motor in case of a fault.
Features:
Compact design with thermal-magnetic protection.
DIN rail or screw mounting options.
Adjustable current settings.
Manual and automatic reset options.
TeSys GV3 Motor Circuit Breakers:
Description: TeSys GV3 motor circuit breakers offer a comprehensive motor protection solution, including short circuit and overload protection.
Features:
Adjustable thermal-magnetic protection.
Compact design for motor control panels.
DIN rail mountable.
Manual and automatic reset options.
Key Features of Schneider Electric Overload Protection:
Adjustable Settings:
Schneider Electric overload protection devices typically feature adjustable current settings, allowing customization based on the specific requirements of the motor.
Compact Design:
Many Schneider Electric overload protection devices are designed to be compact, facilitating easy integration into control panels and motor control systems.
Thermal and Electronic Protection:
Schneider Electric offers both thermal overload relays and electronic overload relays, providing a range of options for motor protection.
Reset Options:
Overload protection devices often come with manual and automatic reset options, providing flexibility based on the application’s needs.
Communication Capabilities:
Some advanced overload relays may have communication capabilities for integration into broader automation and control systems.
