Since 1971, Micro Detectors has been developing and producing a wide range of sensors for various applications: inductive, capacitive, optical, ultrasonic, safety barriers, encoders, light grilles. The accumulated experience allows us to produce high quality products at low prices. A feature of the company is an individual approach and the ability to develop custom models for various tasks

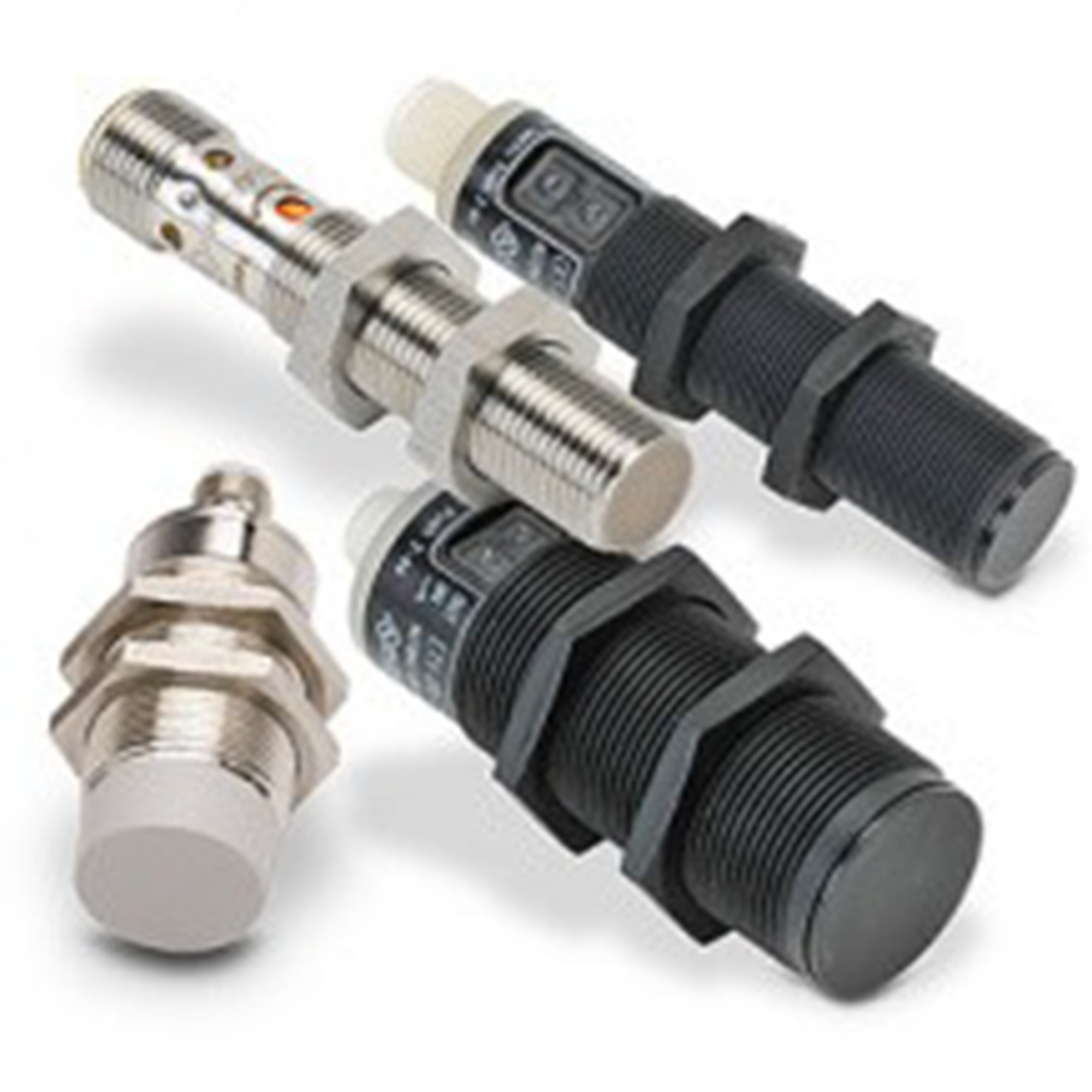

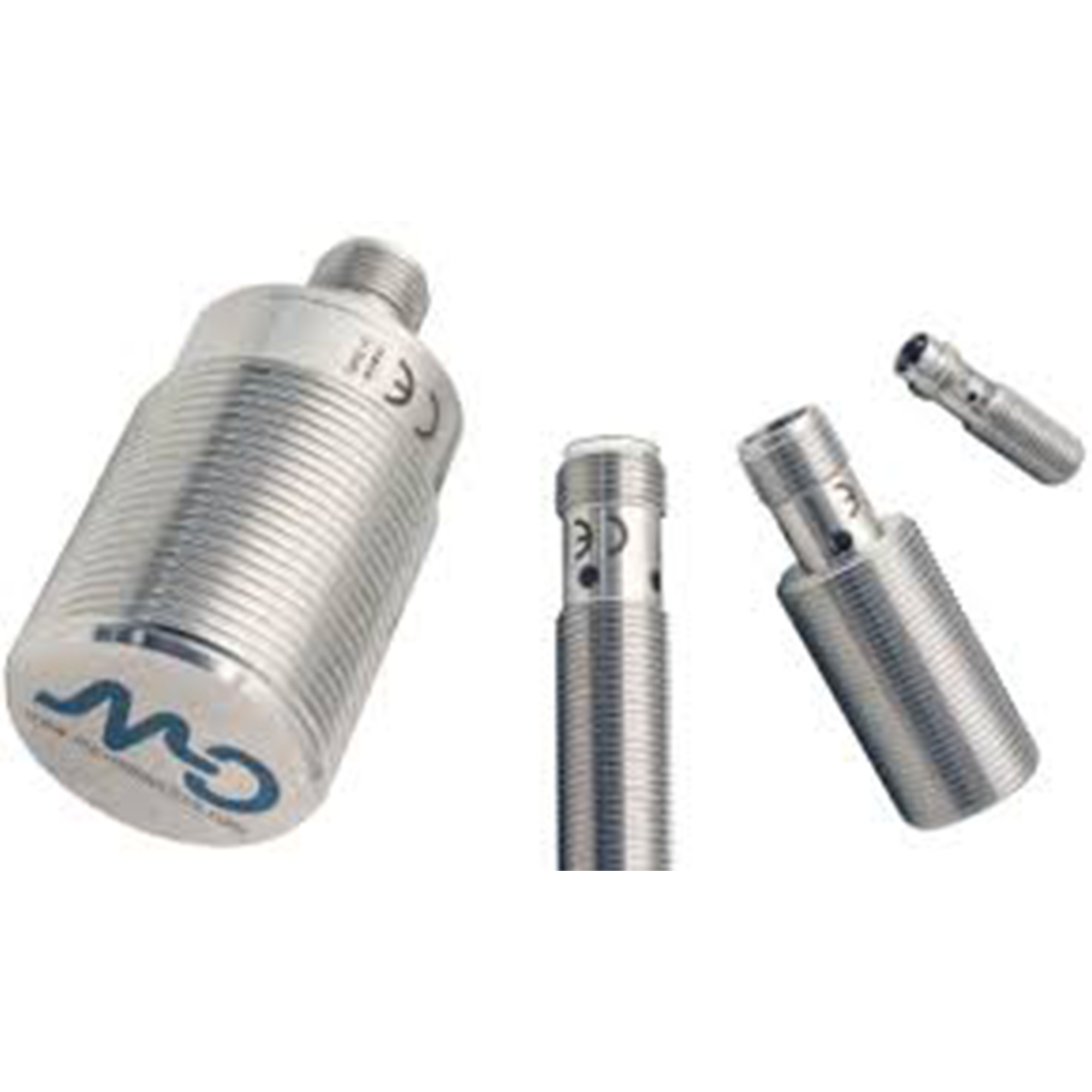

–Inductive / Capacitive Sensors
Inductive sensors are used to sense metal objects and can be utilised in very difficult applications, even in the presence of oils, powders, liquids and vibration. They are commonly mounted on machine tools, textile machines, transport systems, packaging machines and all automation applications.
-
Protection degree: IP 67
-
Ambient limits: -25 – +70°C
-
LED indication: Incorporated
-
Short circuit and polarity reversal protection
Inductive sensors detect metallic objects, while capacitive sensors detect all other materials.
The following types of proximity sensors are available:
- Inductive AC Sensors
- Analog inductive sensors
- Cubic Capacitive Sensors
- Cubic inductive sensors

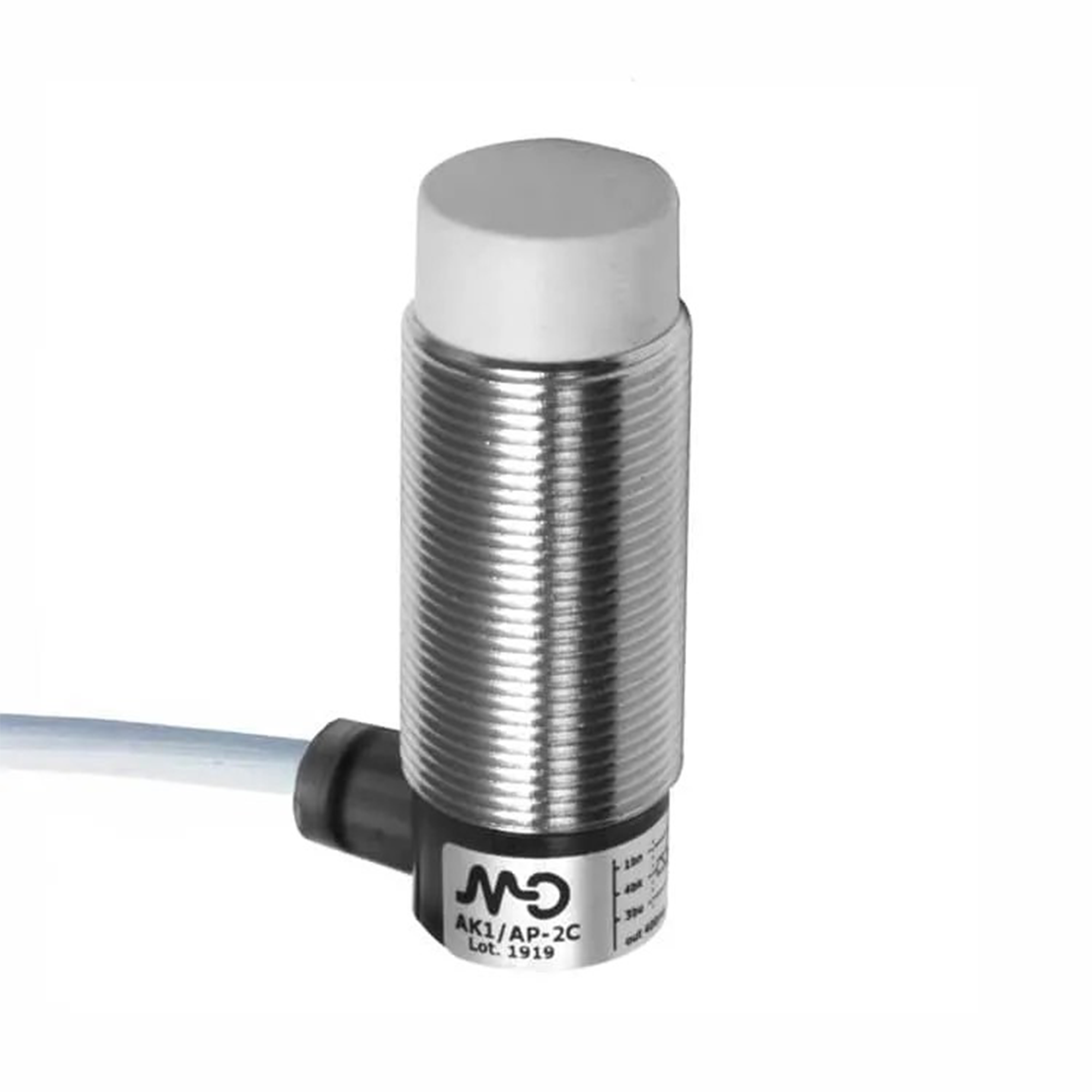

- Cylindrical Capacitive Sensors
- DECOUT NPN / PNP – NO / NC inductive sensors
- High Temperature Inductive Sensors
- IP68 Inductive Sensors
- IP69K inductive sensors
- Miniature Inductive Sensors
- Standard Inductive Sensors

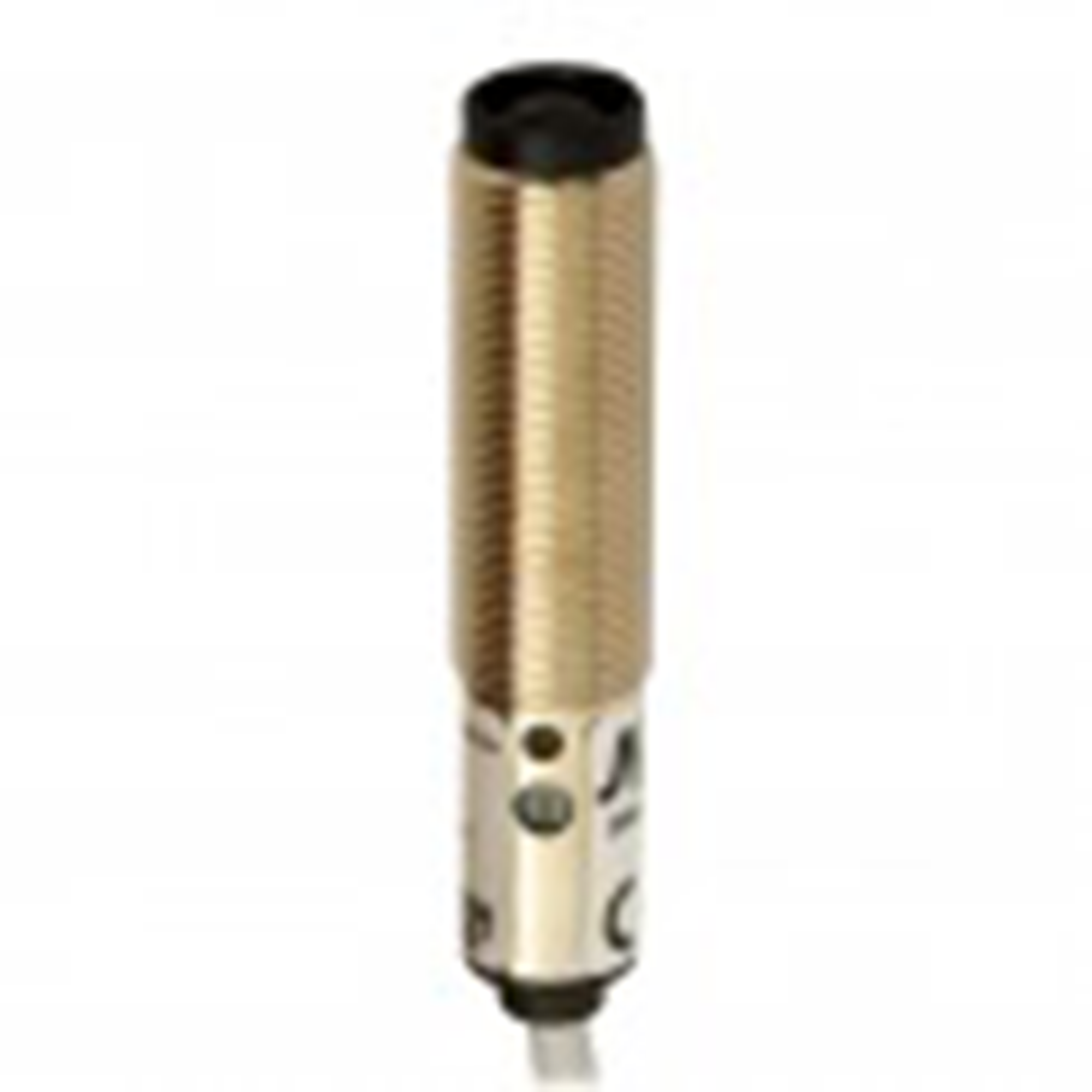

-Photoelectric sensors
Micro Detectors Photoelectric Sensors portfolio includes cylindrical sensors from M8 to M18 diameters as well as cubic sensors both MINI and MAXI size.
In addition to above different models depending on the functions described, following products for special applications are also available:
• with AISI316L stainless steel housing and IP69K protection degree suitable for applications in food & beverage and pharmaceutical industry
• with DECOUT (NPN/PNP,NO/NC) output to fit any connection need as well as for series and parallel connections
• with laser emission (classe1), necessary either to detect very small objects or to reach great distances
• with AC supply 24-230 Vac o 24-230 Vdc
• sensors with separate amplier unit
The following types of photoelectric sensors are available:
- Cubic
- Cylindrical
- Fiber optic amplifiers
- Fork
- IP69K
- M18 short body
- Optical fiber
- Special
- With remote control amplifier

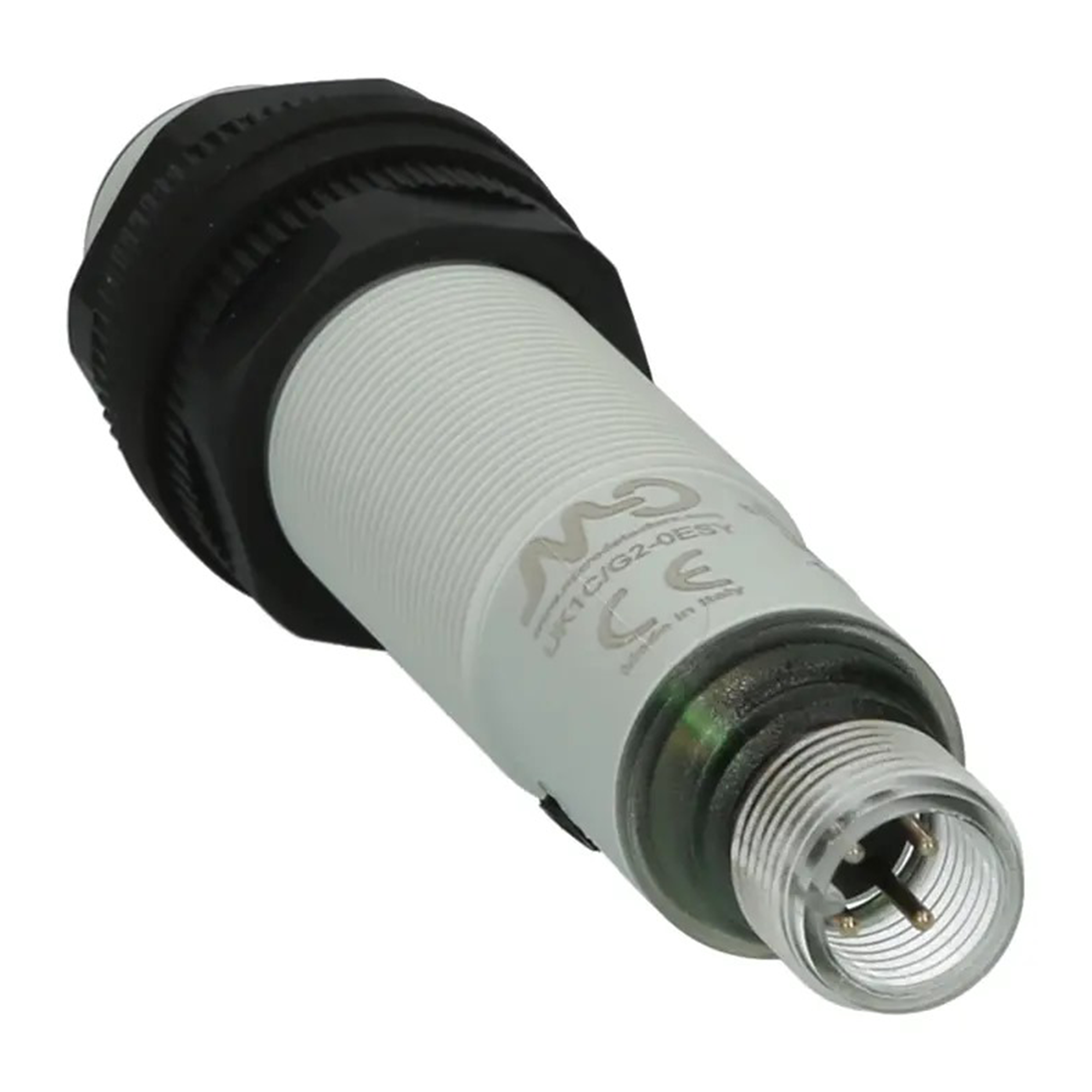

-UK series M18 cylindrical ultrasonic sensors sense in direct diffuse mode. A teach-in button is used to set working distance, output status (NO/NC) and slope of analog output and to change the function. All models are temperature compensated to ensure reliability throughout the entire detection range and are totally resin filled for applications subject to vibration offering an IP67 protection degree.
Cylindrical ultrasonic sensors
UK series ultrasonic sensors IP67 (EN60529)- Sensitivity: Adjustable (via external teach-in)
- Ambient limits: -20 – +60°C
- Supply protection: Polarity reversal, transient
- LED indication: Orange (output/regulation), green (echo reception)
- Housing material: PBT plastic (AISI 316L stainless steel available on request)
The following types of ultrasonic sensors are available:
- Cubic
- Fork
- M18
- M18 short body
- M30
-Applicative sensors
M.D. Micro Detectors is a company specialized in the realization of custom solutions in the field of sensors, able to satisfy any application needs of our customers.
In addition to the catalog of application products, we offer our service to support your technical staff.From development and design of application solutions to their industrialization and production, M.D. Micro Detectors team is able to offer solutions with the speed, competence and quality that distinguish us.

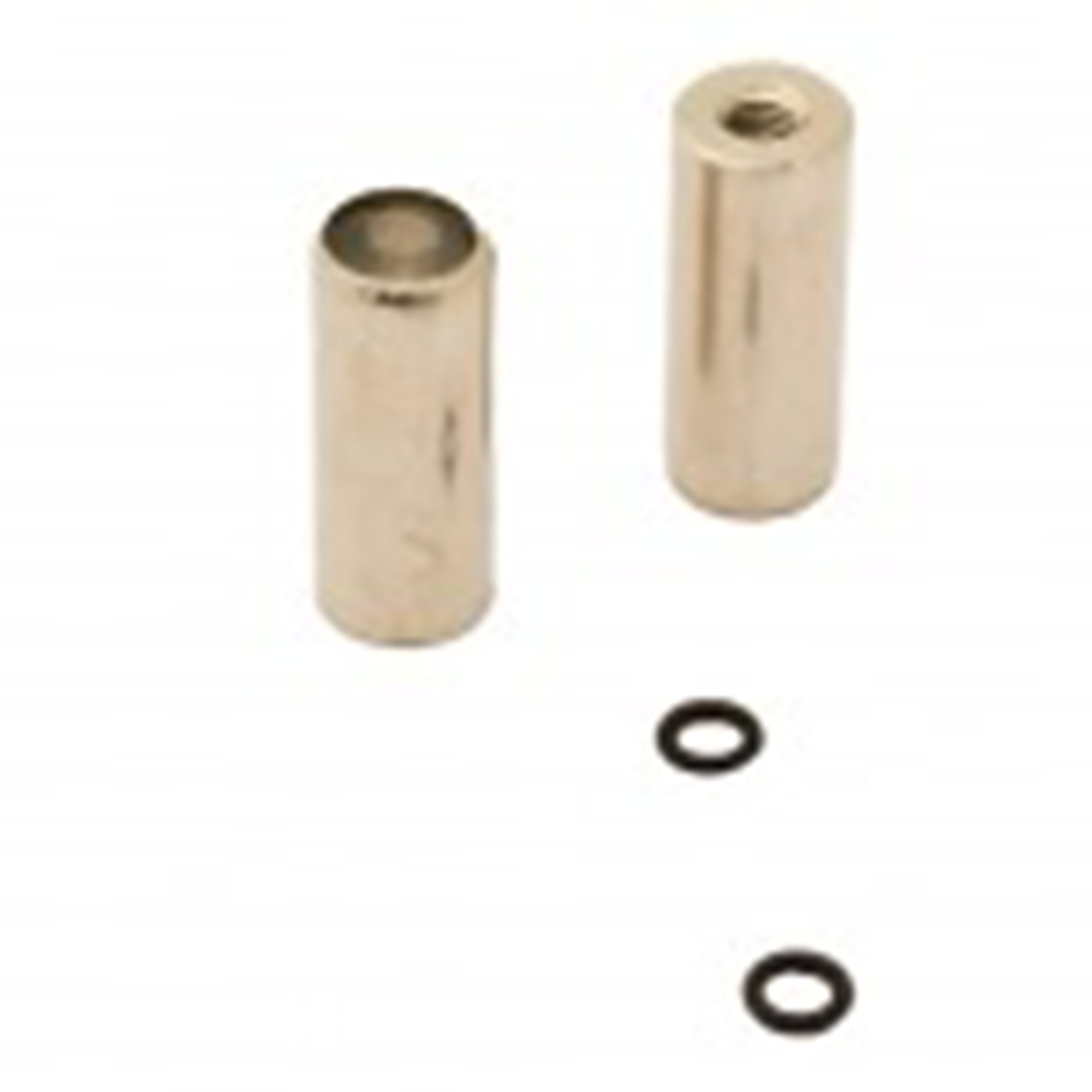

-Accessories
The following types of accessories are available:
- Cable
- Connections
- Fiber optics
- Installation Accessories
- Reflectors
- Security Installation Accessories
