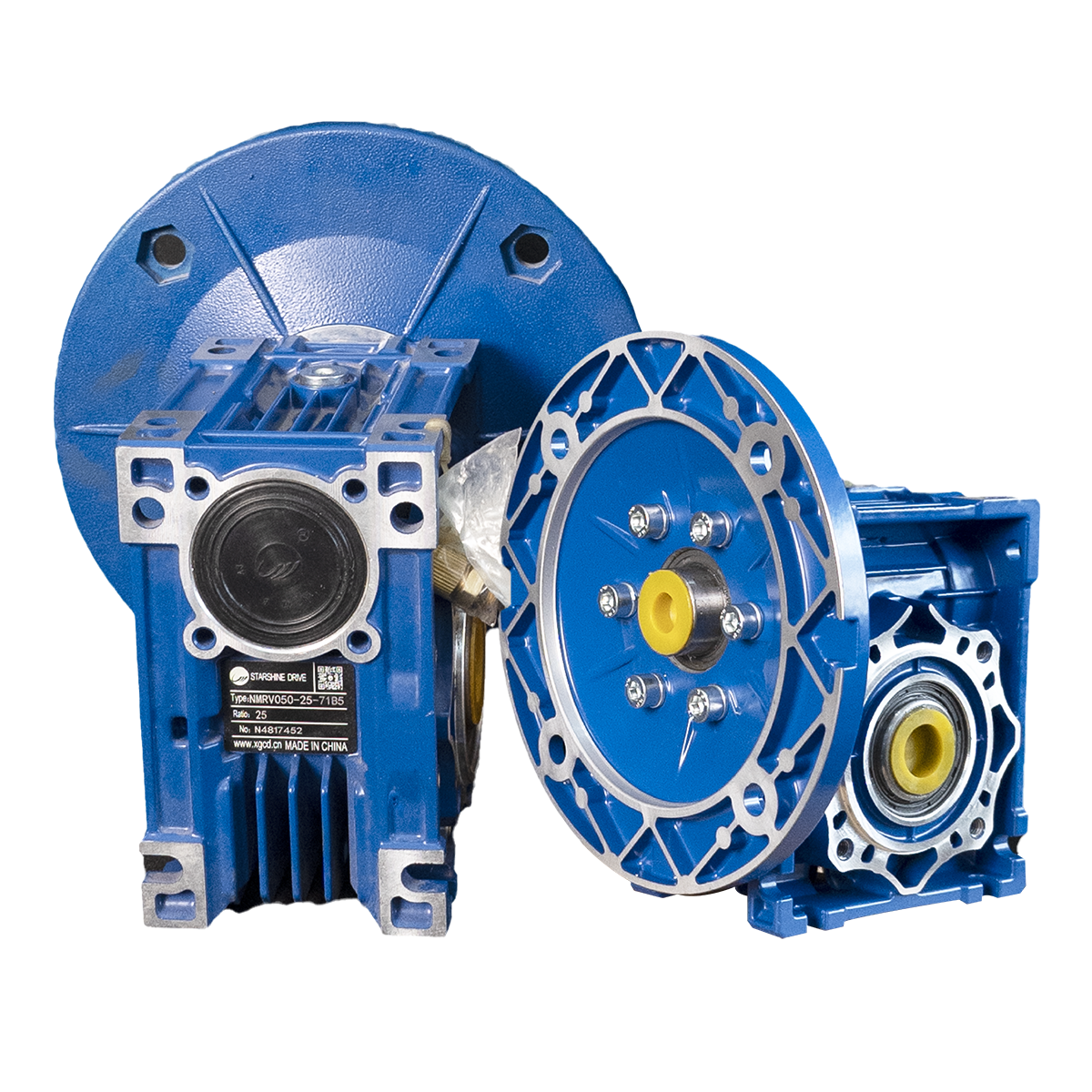

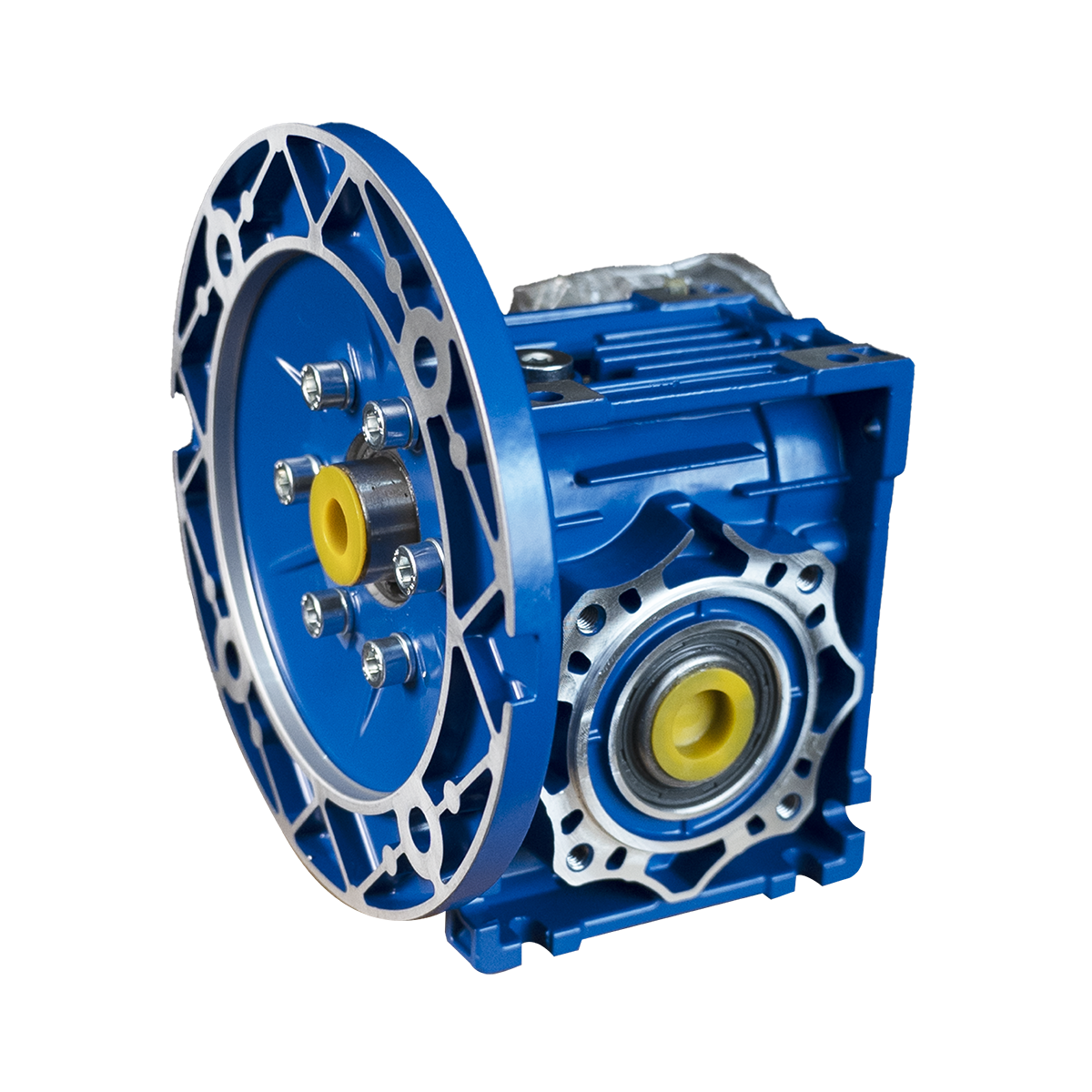

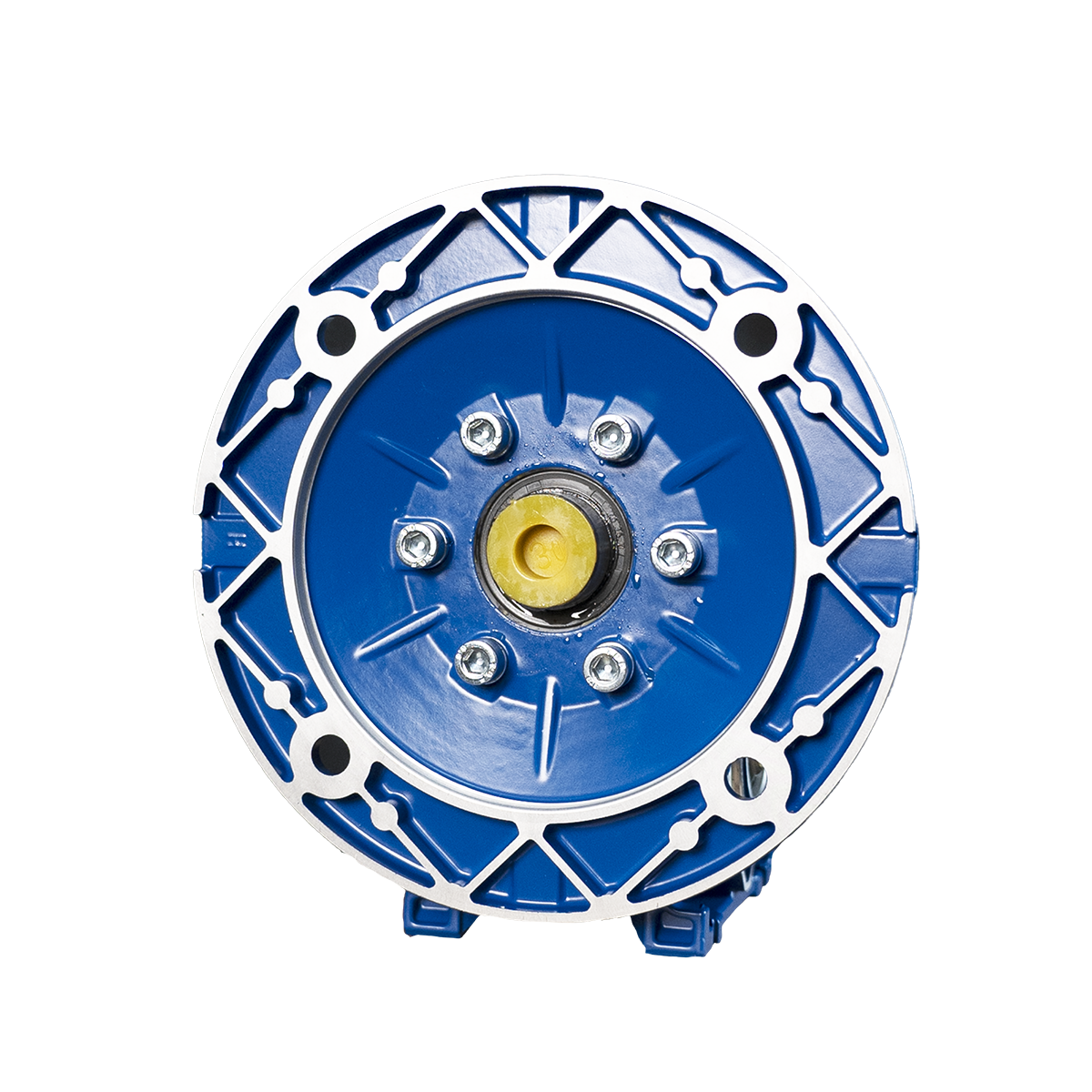

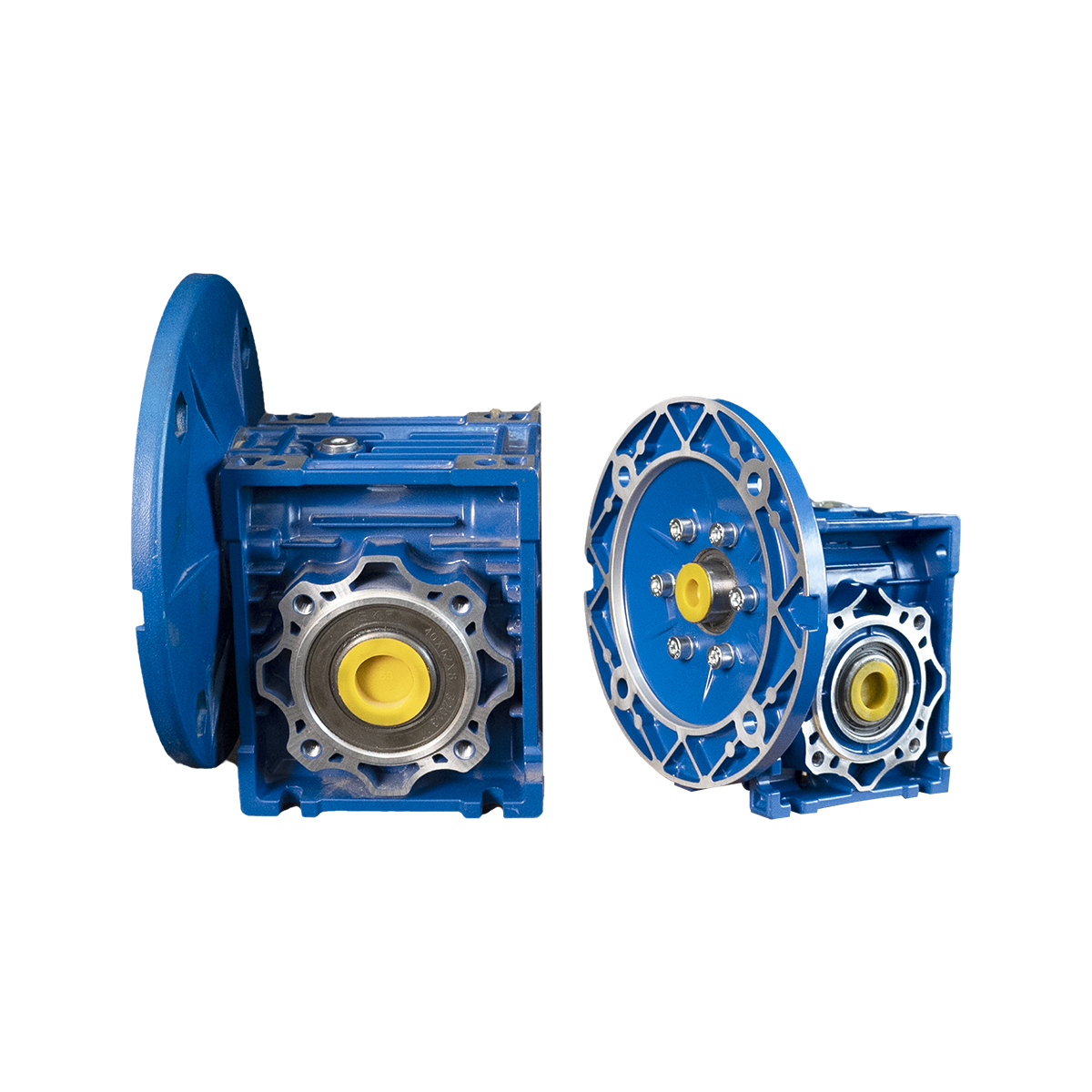

RV series worm reducers are the product latest promoted by Starshine Drive combinate advanced transmission manufacture technology and the advanced international technology. RV series worm reducers have passed ISO9001 international quality system certificate and up to Q/XGJD1-2002 standard with ref.NO.Q- B/440600 21416-2002.

Feature：

• RV sizes: 030-040-050-063-075-090-105-110-130-150
• Input Options: with input shaft, With Square flange,With Input Flange
• Input Power 0.06 to 11 kW
• RV-Size from 030 to 105 in die-cast aluminium alloy body and over 110 in cast iron
• Ratios between 5 and 100
• Max torque 1550 N.m and admissible output radial loads max 8771 N
• Aluminum units are supplied complete with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity
• Loading capacity in accordance with: ISO 9001:2015/GB/T 19001-2016
• Size 030 and over are painted with RAL 5010 blue
• Worm gear reducers are available with diffferent combinations: NMRV+NMRV, NMRVpower+NMRV, JWB+NMRV

NMRV, NRV+VS,NMRV+AS,NMRV+VS,NMRV+F

• Options: torque arm, output flange, viton oil seals, low/high temperature oil, filling/drain/breather/level plug,Small gap

The new worm reducers have the following outstanding advantages:

• With cubic structure,RV030-105 is made with die cast aluminium material body and RV 110-150 cast iron ma- terial. The product owns advantages of good appearance, small volume, quick radiating, flexible mounting.
• The worm shaft was produced by special heat treatment with superior alloy steel; The meshing of the worm wheel has patented copper alloy. Their performances are advantageous over other suppliers in China.
• The worm gear and worm shaft adopt precision and meshing to ensure the stable transmission、lowtemperature、low noise level、high efficiency and long service life.
• The input and output parts are treated by smooth,and dusty proof to increase the quality and its service life.
• High quality bearing and seals to prevent from oil leakage.
• JWB+NMRVseries is worm gear reducer with variator,which can adjust speed on load,to obtain variable output speed.

RV series is widely used,and an ideal choice for modern industrial equipments to realize big transmission ratio.
